Sunday, 25 June 2017

Naturalness: A Pragmatist's Guide

1. The long read

I've been meaning to write a more comprehensive reflection on naturalness here for a while now, ever since penning a summary in the introduction to my PhD Thesis (now conferred) and submitting a paper on the topic (now published). During my graduate studies, I spent a lot of time earnestly trying to understand the assumptions on which naturalness was predicated, and how those assumptions might be written down hierarchically as a quasi-nested set, in order to appreciate what a "strong" or "conservative" stance on naturalness would entail. I did not find this to be an easy task. Instead, I found the literature to be plagued with oversimplifications, hand-waving, a lack of distinction between physical and unphysical quantities, definitions which are imprecise and inconsistent, and a great many unmentioned and/or unconsidered assumptions. Eventually I began to piece together my own understanding, and it became clear that the subject is more nuanced than many seem to appreciate, deserving a more careful treatment than what is typical.

I offer this post as an attempt at a comprehensive summary of my current understanding, in the hopes of getting people to at least step back and question what they thought they knew about naturalness. Throughout I will challenge conventional wisdoms. I am not intentionally trying to be provocative, just that I don't believe some of the things that are often said with regard to naturalness actually pass muster, and I will try to make it clear just why. The views are my own. The layperson will be able to follow for a while, however I will not make special effort to keep the latter prose below a graduate level. It is a long read, but it needs to be.

2. What do we mean by naturalness?

When we talk about naturalness we are talking about the required values of input parameters which enter a theory in order to explain observations (i.e. to basically reproduce the standard model at low energy). The descriptor "natural" is commonly used in two distinct senses in the literature.
  1. A theory may be called natural if the required dimensionless input parameters are of $\mathcal{O}(1)$. (If there are input parameters with mass dimension, then this criterion requires all those mass scales to be similar).
  2. A theory may be called natural if the required input parameters do not need to be very precisely specified.
These senses are quite different; a theory can satisfy the first condition without satisfying the second, and vice versa. It is the second sense, and naturalness of the Higgs mass in particular, which the remainder of this post is dedicated to, and henceforth what we take as the qualitative definition of what it means to be natural.

3. What do we mean by "very precisely specified"?

Actually there is a not-so-subtle yet under-appreciated point to be made here, because there is a local and a global sense in which the parameters could be described as precisely specified. Both are used in the literature.
  1. In the local sense, a theory is natural if small perturbations around the required input parameters does not wildly change the observables.
  2. In the global sense, a theory is natural if the observables are not "improbable" when considered over the range of possible values the input parameters could have taken on.
The first "local naturalness" sense is usually what is referred to as "fine-tuning" (but not always), and it is easy to understand why people use measures involving partial derivatives to quantify such naturalness (we will cover this later on). The second "global naturalness" sense is essentially what is explored when people perform parameter scans.

It is tempting to think of the first sense as a weaker requirement than the second—I do tend to categorise it loosely as such—since it is easy to imagine a theory where a small but finite "island" of parameter space reproduces low scale physics like observed; this would be a locally natural theory that is not globally natural. But it seems to me also possible at least in principle to have a globally natural theory that is not locally natural (think chaotic systems). So I do think these are in fact technically distinct senses and this should be acknowledged. I will use the terms "locally natural" and "globally natural" to refer to these two qualitative definitions henceforth where appropriate.

4. Why should a theory be natural, anyway?

I think it's fair to say that the primary goal of theoretical particle physics is to discover the higher scale theory (and intermediate theories) from which the standard model (plus gravity) derives. The secret hope is that it uniquely predicts the standard model at low energy, i.e. that it is "perfectly" natural by the above definitions (it may even have inputs of $\mathcal{O}(1)$, or none at all). Failing that, the next secret hope is that it (loosely) generically predicts something like the standard model, i.e. that it is in some sense globally natural. The idea, I guess, is that the standard model should not be an accident but instead the inevitable outcome of some unified mathematical description – if only we could figure it out.

Many physicists would like, or subjectively feel like, this should be the case. It would be a somehow "neat" outcome. However, from a logical point of view, there is no guarantee that nature is actually like this. It is absolutely possible that nature is ultimately described by a set of mathematical rules with some input parameters which just "are what they are," and which may even be unnatural according to the above definitions.

5. What people do

Nevertheless one is certainly free to make the assumption that the high scale physics is natural, optionally acknowledging the logical possibility that it is not, and use that assumption as a sort of guiding principle to constrain theory space. That is what people do.

6. What people actually do

What people actually do (at least in hep-ph) is use the assumption of naturalness to constrain theories which are defined at a higher scale than the standard model, but not at so high a scale as to be considered the high scale theory. That is, if you consider the standard model as the end of a chain of effective theories all the way up to the highest scale, people are checking for naturalness halfway up the chain.

Why is this useful? There seems to be an implicit assumption here. The assumption is that naturalness of the theories halfway up the chain implies something about the naturalness of the theories above. But this needn't be the case. Even if it were the case it might be only at a very high scale that the theories begin to look natural. It is a logical possibility that, when viewed one by one, the chain links actually realised in nature might appear as any combination of "natural" and "unnatural" as you work your way up. A natural effective theory can be embedded in an unnatural theory, and an unnatural effective theory can be embedded in a natural one. Indeed, the latter idea can be used as a get-out-of-jail-free card; it's essentially the trick exploited by multiverse proponents, where an unnatural observable theory is made to be natural by embedding it in a large enough ensemble of theories, then appealing to anthropics. We could turn a natural theory into an unnatural one using the same trick.

The point here is that we should acknowledge when we are testing naturalness some way up the chain and that this does not necessarily imply anything about what's above. Still, this does not preclude the possibility—and this is what theorists hope—that it may be the successful algorithmic way to climb the theory chain all the way to its natural end. It might be true in some sense that natural theories mostly beget natural theories.

7. Quantum corrections

Since the definitions of naturalness above involve observables and input parameters, we need to go into some technical detail to understand how parameters behave in quantum field theories. In particular, they are not constants. For instance, what is called the fine-structure constant $\alpha\approx 1/137$ changes value with energy scale, and even its value at fixed scale depends on the renormalisation scheme (more on this later) and loop level which you are working in. In other words, in quantum field theories, your parameters are "corrected" by quantum effects.

The nature of these quantum corrections is important for understanding exactly what kind of naturalness problem we're talking about. There are three general cases I want to highlight which represent different levels at which a theorist might worry.
  1. It might be that a parameter needs to be very precisely specified in a global sense, but nevertheless once it is specified it is stable under quantum corrections, because the corrections are proportional to that parameter.
Indeed, if one were to set that parameter to zero, then the corrections would also be zero. This is usually indicative of an additional symmetry being introduced in that limit, and the parameter is called "technically natural" in the literature, a terminology introduced by 't Hooft. An example is the Yukawa couplings in the standard model. You might puzzle about why their values are the way they are (in the global sense), but nevertheless once they are set there is no local naturalness problem, due to the chiral symmetry reinstated when the Yukawas are set to zero. This is why you don't hear about a naturalness problem for the electron mass – there is no local naturalness problem, but rather a sort of global naturalness problem to be solved in explaining the Yukawa structure. The same is actually true of neutrino masses, although the global naturalness problem is considered somehow worse because the required Yukawa couplings are so much smaller than for the other fermions, suggesting that there might be another explanation.
  1. It might be that a parameter needs to be very precisely specified in a global sense, but nevertheless once it is specified it is stable under quantum corrections, because the corrections are sufficiently smaller than the parameter.
This is distinct from the previous case in that setting the parameter to zero does not reintroduce a symmetry. You couldn't call such a parameter technically natural, but you could still say that it is locally natural in the $\log$ of the parameter. An example is the QCD $\bar{\theta}$ parameter in the standard model. The $\bar{\theta}$ parameter has a global naturalness problem because a priori one expects this parameter could take any value up to $\mathcal{O}(1)$, however experiments have ascertained that its value is $\lesssim 10^{-10}$. If $\bar{\theta}$ is set to zero by hand at a high scale, quantum corrections reintroduce it, but only at the level $\sim 10^{-17}$. So there is a global naturalness problem to be solved (the "strong CP problem"), but once you have solved this you are done. People consider this case as more of a problem than the previous case, since there is no "increased symmetry" explanation that can be appealed to. Indeed, the way the $\bar{\theta}$ problem is usually solved is to introduce the appropriate symmetry by extending the standard model.
  1. It might be that a parameter needs to be very precisely specified in a global and local sense, since that parameter needs to cancel off comparatively large quantum corrections to many significant figures in order to realise the low scale observations.
This is considered as a much greater problem, since it appears to be just an unexplained and very precise conspiracy between a boundary condition and the quantum corrections. This is exactly the sort of conspiracy that is needed in certain quantum field theories with light scalars (like the Higgs) which interact sufficiently strongly with heavy new physics. That italicised text is often left out of the usual story, but it is important, as I will explain...
8. The usual Higgs story

In the standard model the major naturalness worry is the Higgs mass-squared term $\mu^2 = -m_h^2/2 \approx -(88\text{ GeV})^2$. The usual introduction-slide story that is told is the following.

One-loop Feynman diagrams introduce a "quadratically divergent" quantum correction to this term,  $$\delta\mu^2 \sim \frac{1}{(4\pi)^2} y_t^2 \Lambda^2,$$ which depends on the "cutoff scale" $\Lambda$. If $\Lambda$ is very large then this quantum correction needs to be cancelled away very precisely in order to realise the observed Higgs mass.

Ostensibly this sounds like a naturalness problem of the third kind as written just above. But we should ask: what does $\Lambda$ represent and what exactly is cancelling it away?

9. Input parameters in quantum field theories

To be true to the definition of naturalness we are working with, what we would actually like to do is see how the observables depend on the input parameters of the theory. So we can try to do just that; first we might think of taking the inputs as the parameters which enter the standard model Lagrangian, but we need to be careful, since quantum field theories are not that simple...

The parameters (and the normalisation of the fields themselves) which enter the Lagrangian of any quantum field theory are called "bare" quantities. If you try to calculate observables using these bare quantities you end up with a whole lot of infinities. Understanding and taming these infinities was an important problem of early quantum field theory. The key insight turned out to be the following: the bare quantities are not measurable. What is measured are the physical observables themselves, e.g. scattering cross-sections or decay rates, which are manifestly free from infinities. In order to proceed, from a calculational perspective, physicists learned to employ "regularisation" procedures to capture the divergences arising in the bare quantity calculations. Calculation results can then be made consistent with the finite physical observables by appending divergent counterterms to the bare quantities, which cancel with the divergences arising in the calculations. I think it is fair to say the modern interpretation is that the cancellation between divergences is just an unphysical intermediate artifact of the calculation procedure. Once the Lagrangian parameters are regularised (under some scheme) and rewritten in terms of physical observables, they are said to be "renormalised". These parameters are measurable.

10. The cutoff scale in the standard model

The quadratic divergence $\propto y_t^2 \Lambda^2$ in the standard model is due to a "cutoff regulator" which captures the divergent quantum correction to $\mu^2$. What it must be cancelled against is the bare $\mu_0^2$ contribution, in order to realise the renormalised parameter $\mu^2(m_t)\simeq -m_h^2/2$. What to make of this "unnatural" cancellation? In my opinion there is only one consistent interpretation: it is just the regularisation and renormalisation procedure. The cancellation has no physical significance, since the cutoff regulator scale $\Lambda$ has no physical significance, it is just the arbitrary scale at which we choose to renormalise, essentially just being used as a dummy variable or dictionary to convert between observables and renormalised Lagrangian parameters. Indeed, the very procedure itself mathematically demands that any observable you calculate does not depend on which $\Lambda$ you choose.

11. The standard model is natural

Again, to be true to the definition of naturalness we are working with, we want to see how the observables relate to the inputs. So what is the input parameter of interest? It can only be the renormalised parameter $\mu^2(\Lambda_h)$, defined at some high scale $\Lambda_h$ (where boundary conditions are specified), and not the bare parameter $\mu_0^2$, since after all I cannot measure $\mu_0^2$, and the regularisation procedure anyway forces me to choose a counterterm to realise the observed Higgs mass.

Next we must ask how the low scale parameter, $\mu^2(m_t)$, depends on the high scale input $\mu^2(\Lambda_h)$. An interesting implication (interesting enough for some Nobel Prizes, anyway) of the regularisation and renormalisation procedure is that the quantum parameters depend on energy scale according to the "renormalisation group equations". The renormalisation group equation for the Higgs mass-squared parameter in the standard model is $$\frac{d \mu^2}{d \log\Lambda_R} \approx \frac{6 y_t^2}{(4\pi)^2} \mu^2 ,$$ where $\Lambda_R$ is the renormalisation scale and the dependence of each parameter on $\Lambda_R$ is implied. If we take $y_t$ as a constant we can easily solve this to write $$\mu^2(m_t) = \mu^2(\Lambda_h) \left(\frac{m_t}{\Lambda_h}\right)^{\frac{6 y_t^2}{(4\pi)^2}}.$$ Even if we take $\Lambda_h\sim 10^{18}~\text{GeV}$ and $y_t\sim 1$, we have $\mu^2(m_t)\sim \mu^2(\Lambda_h)/4$. We see that the input parameter $\mu^2(\Lambda_h)$ has not at all needed to be precisely specified (in the local sense) to realise the observed Higgs mass (and in actuality the news is much better than a factor of 4, it is $\approx 1$, since the renormalised $y_t^2$ parameter shrinks with scale quite quickly).

What I am arguing here is that, when we only consider the parameters which have a physical significance, we can only conclude that the standard model is natural (in the local sense), since it is stable for small perturbations around the renormalised input parameter $\mu^2(\Lambda_h)$, i.e. we have $$\mu^2(m_t) \sim \mu^2(\Lambda_h).$$Indeed this might have been guessed, since there is only one explicit physical scale in the theory, and no dynamic scales are generated from the electroweak scale up to the scale at which we expect the theory must be modified (which we'll come to shortly).

12. A hierarchy problem

Nevertheless we have not solved a sort of the global naturalness problem. If one has $\mu^2(\Lambda_h) \lll \Lambda_h^2$ one might ask: why? In the standard model it is fair to argue that $\Lambda$ is an arbitrary regulator scale with no physical significance, $\Lambda_h$ is an arbitrary scale at which we specify the boundary condition, and that $\mu^2(\Lambda_h)$ is the only explicit mass scale in the theory, so why not? However many would argue that this is beside the point, since we expect that there is physics at a much higher scale, and it is actually this physics that we are concerned about. There seem to me to be two concerns here which are fundamentally distinct, although this distinction is not commonly made.
  1. The first concern is the violation of naive dimensional analysis.
This is what I think of as a "hierarchy problem", to be defined henceforth simply as an unexplained hierarchy between energy scales in the theory (this can be thought of as a sort of global naturalness problem). It should be emphasised here that this is not the sense in which people usually use the term hierarchy problem; usually it is used as a quasi-synonym for a naturalness problem for mass terms. Still, I find this definition and distinction useful and necessary, since it is possible to have a hierarchy problem (as defined) without having a (local) naturalness problem, as I will soon explain.
  1. The second concern is that heavy new physics induces a naturalness problem for the Higgs mass.
For example, it could be the case that a physical mode exists at a very high scale, say $M$. The argument you often hear is that this makes $\Lambda$ physical, by setting the cutoff scale for the standard model at $\Lambda \sim M$, which then implies a $\delta\mu^2 \sim \frac{1}{(4\pi)^2} y_t^2 M^2$ correction which is also physical, so that the new mode (unless non-trivially ameliorated) has induced a naturalness problem. But I don't buy this argument. The term "cutoff scale" in this context is usually defined loosely as the scale at which the standard model fails to be a good description, or sometimes more precisely as the universal scale at which one defines higher dimension operators of the standard model effective field theory (making lower scale observables expansions in powers of $1/\Lambda$). But neither of these are the same thing as the cutoff regulator scale; the former are precise values and the latter is by definition an arbitrary value. Using the same term for each is the cause of some confusion. Instead of this hand-waving argument, we should take the more pragmatic approach of just writing down the theory with high scale physics included and checking when/if there's a naturalness problem. We will do this presently.

13. The standard model with a hierarchy problem can be natural

What we should do is the following: write down the field theory with the high scale physics included, match this on to the effective field theory of the standard model at the threshold around $M$, and then write the Higgs mass-squared term $\mu^2(m_t)$ in terms of the input parameters of the high scale theory at scale $\Lambda_h>M$. When you do this you will find that an additional term appears in the $\mu^2$ renormalisation group equation above the scale $M$, i.e. $$\frac{d \mu^2}{d \log\Lambda_R} \sim \frac{1}{(4\pi)^2} y_t^2 \mu^2 + C M^2,$$where $C$ is some constant. There is also a threshold correction of similar order which appears when the theories are matched (in dimensionless schemes). The end result is you get something like $$\mu^2(m_t) \sim \mu^2(\Lambda_h) - C M^2 \log\left(\frac{\Lambda_h}{M}\right) + C_{thresh} M^2,$$where the first term is as in the pure standard model, the second term is the renormalisation group contribution, and the third term is the threshold correction contribution. This is why the Higgs has a potential naturalness problem: because it is not protected from corrections of this kind from any heavy new physics, and if $C M^2\gg \mu^2(m_t)$ then the input parameter $\mu^2(\Lambda_h)$ needs to be very precisely specified in order to realise the observed Higgs mass.

But this is exactly the point: it is $C M^2$ which is the quantity of interest, not $M^2$, and not (necessarily) anything to do with $y_t^2$. And what is $C$? Well it depends on the new physics: if it is a right-handed neutrino it is $\sim y_\nu^2 / (4\pi)^2$; if it is a particle with standard model gauge charges it is $\sim g^4/(4\pi)^4$; if it is another scalar it is $\sim \lambda_{HS}/(4\pi)^2$ (which could even be exactly zero in a technically natural way if the scalar is a gauge singlet); and if it is a stop (i.e. a top squark) it is $\sim y_t^2/(4\pi)^2$.

This brings us to a completely logical and obvious point: the correction to (and the naturalness problem for) the Higgs mass induced by any heavy new physics depends on the strength at which that new physics couples or "talks" to the Higgs. Therefore it is possible to have a field theory with a hierarchy problem, in the sense that new physics exists at a much higher scale than the electroweak scale, without having a naturalness problem (at least in the local sense), as long as that new physics couples sufficiently weakly to the Higgs.

14. The standard model with the hierarchy problem can be natural

By the hierarchy problem I am specifically referring to the disparity between the electroweak scale and the scale at which we expect quantum gravitational effects become important, i.e. the Planck scale $\Lambda_{Pl}\sim 10^{18}~\text{ GeV}$. The hierarchy problem is often treated as synonymous with the naturalness problem for the Higgs. Certainly it is a hierarchy problem, at least as I have defined it, but does it imply a naturalness problem? I don't believe it necessarily does. Let me offer one argument.

The Planck scale, as far as I know, is only derived by dimensional analysis. The physical modes of gravity (or whatever they may be) may actually lie far below this scale, i.e. the theory of gravity might actually reside at a much lower scale (call it $\Lambda_G< \Lambda_{Pl}$). The apparent largeness of the Planck scale could then be explained by a small coupling strength (call it $C$) between standard model modes and gravitational modes, e.g. something like $\Lambda_{Pl} \sim \Lambda_G/C^2$. The physical correction to the Higgs mass should be proportional to the coupling strength, so something like $\delta \mu^2(m_t) \sim C^2 \Lambda_G^2$, which can be rewritten as $\delta \mu^2(m_t) \sim C^6 \Lambda_{Pl}^2$. Therefore, for sufficiently small $C$, there would be no naturalness problem.

To make a more precise analogy, consider if neutrino mass came from the Weinberg operator, $$ \frac{1}{\Lambda_N} \overline{(l_L)^c}\Phi\Phi^Tl_L .$$ The neutrino mass scale of $\sim 0.1\text{ eV}$ suggests $\Lambda_N\sim 10^{15} \text{ GeV}$ (which is why people immediately think of grand-unified theories). But in the simplest renormalisable neutrino mass model with right-handed neutrinos $N$ coupling to the Higgs via $y \overline{l_L} \tilde{\Phi} N$, we have$$\Lambda_N \sim \frac{M_N}{y^2}, \;\,\;\,\; \delta\mu^2(m_t) \sim \frac{y^2}{(4\pi)^2}M_N^2 \sim \frac{y^6}{(4\pi)^2} \Lambda_N^2.$$If $y^2 \lesssim 10^{-4}$, then the corrections to the Higgs mass are no larger than 1 TeV. This small value for $y$ is even technically natural. The neutrino mass seesaw requirement $y^2=m_\nu M_N / v^2$ translates this to $M_N\lesssim 10^7\text{ GeV}$.

We see that in this simple neutrino mass example: dimensional analysis implies an apparent very large scale $\sim 10^{15}\text{ GeV}$ in the theory; this apparent large scale could just be due to the appearance of a technically natural small coupling; and even the existence of a physical large scale $\sim 10^7\text{ GeV}$ in the renormalisable theory calculably does not introduce a naturalness problem. I see no logical reason why something like this could not also be the case for gravity. Indeed, from what I can tell this is exactly what happens in gravitational theories like e.g. softened gravity, or large extra dimensions, and surely others.

15. The $y_t^2\Lambda^2$ correction


It is worth commenting that, in standard model plus heavy new physics theory, the quadratic divergence $\propto y_t^2\Lambda^2$ induced by the top quark loop does not appear in the equation relating $\mu^2(m_t)$ to the renormalised input parameter $\mu^2(\Lambda_h)$. Only contributions from heavy new physics appears. This is consistent with the interpretation of $\delta\mu^2 \propto y_t^2\Lambda^2$ as an unphysical contribution related to the regularisation procedure.

Often in the modern literature, proposed solutions to the Higgs naturalness problem (or a little naturalness problem) are motivated by showing that they contribute a term which cancels the $y_t^2\Lambda^2$ contribution. This may be a controversial statement, but I think this line of argument is unhelpful at best and misleading at worst. It's just that it mostly misses the real reason(s) why a given solution can solve a Higgs naturalness problem, and propagates the misconception that the quadratic divergence due to the standard model top quark is the problem which must be tamed by a negative contribution of the same order. The confusion is likely related to the fact that there is an actual physical contribution to the Higgs mass $\sim y_t^2\Lambda^2$ coming from new particles which couple to the Higgs with strength $y_t$ by construction in many of these solutions (e.g. stop quarks in supersymmetry or top partners in composite scenarios). Naturalness will demand that these particles be light because of this physical contribution, not because they need to save us from top quark divergences...

16. The $y_t^2\Lambda^2$ correction in supersymmetry

Let me be more explicit by appealing to the usual argument for why supersymmetry solves the Higgs naturalness problem, and why it needs to appear at a fairly low scale. It goes something like the following.

In a supersymmetric theory, for every fermionic quantum correction there exists an equal but opposite bosonic quantum correction (from the fermion's superpartner). For example, for the top quark we would have:$$\delta\mu^2 \sim \frac{1}{(4\pi)^2} y_t^2 \Lambda^2 - \frac{1}{(4\pi)^2} y_{\tilde{t}}^2 \Lambda^2,$$where the stop contribution cancels the top contribution by virtue of $y_t = y_{\tilde{t}}$. With no quantum correction to the Higgs mass there can be no naturalness problem.

Since supersymmetry must be broken, this cancellation is only good above the (effective) supersymmetry breaking scale (approximately the stop mass scale), call it $\Lambda_{\rm SUSY}$. Below this scale the (uncancelled) top quark contribution dominates, therefore the quantum correction is, in toto,$$\delta\mu^2 \sim \frac{1}{(4\pi)^2} y_t^2 \Lambda_{\rm SUSY}^2.$$ Naturalness demands that this contribution be not much larger than the Higgs mass, which implies that $\Lambda_{\rm SUSY}$ should be not much larger than the TeV scale.

This argument gives the right answer, i.e. that supersymmetry at or below the TeV scale can solve a Higgs naturalness problem, but it is totally misleading. The claim is that the top quark quadratic divergence is the problem that needs to be tamed, and that the taming is done by the stop. But this is not really the reason why supersymmetry solves a potential naturalness problem for the Higgs (nor the reason why there needs to be a stop).

17. Supersymmetry can solve a Higgs naturalness problem
(but probably not in the way you've been taught)

Let me offer an alternative argument which is fully consistent with the picture sketched above (in terms of the renormalised parameters). In this picture the real worry for the Higgs mass is corrections from heavy new physics which is sufficiently strongly coupled to the Higgs. In particular, a heavy particle of mass $M$ introduces a term $\sim C M^2$ into the renormalisation group equation for the Higgs mass, which results in similarly sized terms in the equation for the observed Higgs mass when written in terms of the high scale input parameters. What supersymmetry does for you is ensure that another particle exists (the supersymmetric partner) which contributes another term $\sim -C M^2$ to the renormalisation group equation which cancels the first contribution. In fact it ensures that this property holds to all loop levels and at all energy scales. For this to work in fact requires that every particle must have a supersymmetric partner, not just the heavy particle. This is because, schematically, as you draw higher-loop Feynman diagrams involving the heavy particle you will eventually find one with also e.g. a top quark involved, and hence a loop-suppressed contribution to the Higgs mass $\propto y_t^2 M^2$, or else a contribution to some scalar quartic $\propto y_t^2$ which threatens stability under renormalisation group flow, etc. To cancel these contributions you find that you need a supersymmetric partner for the top. And so on for every other particle. This remarkable result is embodied in the supersymmetric non-renormalisation theorem, which ensures that the renormalisation group equation for each parameter in a supersymmetric theory, including for the mass parameters, is proportional to the parameter itself, i.e. they are always technically natural. So in any supersymmetric theory, once you set a mass parameter at the high scale, it will always be safe from large quantum corrections from heavy new physics (including in theories with very heavy states which couple relatively strongly to the Higgs, like in grand unified theories). This is, for me, the much more profound and completely non-trivial reason why supersymmetry can solve a Higgs naturalness problem (and why there needs to be a stop).

Of course, in nature, supersymmetry is broken, so this can't be the entire story. If nature is fundamentally supersymmetric then the standard model superpartners must have large enough masses to have thus far evaded searches at e.g. the Large Hadron Collider. This is a potential problem for naturalness of the Higgs mass. For example, in the (softly broken) minimal supersymmetric model the Higgs mass-parameter (named here $\mu_{\rm SM}$) is given at tree level by$$\mu_{\rm SM}^2 = |\mu|^2+\mu_{H_{u}}^2,$$ where $\mu$ is the supersymmetric $\mu$-parameter and $\mu_{H_{u}}^2$ is a soft-breaking parameter. Naturalness will loosely demand that the parameters on the right-hand side are not too large so as to require a precisely specified cancellation. But here $\mu$ is also the approximate scale for the higgsino masses, so this would imply light higgsinos. Beyond tree level there are radiative contributions primarily from the stop and gluino sectors, and renormalisation group and threshold corrections to $\mu_{H_{u}}^2$ of the order $\frac{y_t}{(4\pi)^2}m_{\rm stop}^2$. Naturalness will loosely demand that these corrections be sufficiently small as well. This is the argument for light stops (i.e. not because the stop is needed to start cancelling off a quadratic divergence from the top quark). Then gluinos correct the stop mass, so naturalness requires light enough gluinos, and so on. In any case, neither higgsinos, nor stops, nor gluinos have been seen at the LHC, threatening natural supersymmetry.

I am no expert in Higgs mass calculations from high scale supersymmetric parameters, so I will stop here. Broken supersymmetry is not necessarily an impediment for supersymmetry as a solution to a potential Higgs mass naturalness problem. Still, if it is the solution, the supersymmetric standard model partners must be realised at a low enough energy for the above mentioned reasons. To know exactly how heavy they can be before violating naturalness requires actually calculating the Higgs mass in terms of the high scale input parameters, quantifying the dependence on those input parameters, and determining when/if those parameters are required to be "precisely specified". This exercise has become its own industry for papers in high energy physics. Unfortunately many approximations are made in the map from inputs to Higgs mass (e.g. constraining the parameter space), and there is not even an agreed upon approach for measuring the degree of naturalness. This causes its own set of problems, to be discussed after the next section, where I have a small bone to pick.

18. Supersymmetry does not solve the hierarchy problem

The minimal supersymmetric standard model does not explain the origin of the $\mu$ parameter (or $\mu_{H_u}^2$ for that matter). Therefore, and by my definition, one has not eliminated the hierarchy problem (i.e. why is $\mu \lll \Lambda_{Pl}$?), or any other hierarchy problem which might exist if heavy new physics is present (e.g. a grand unification scale). This has its own name: "the $\mu$ problem".

This is not to say the hierarchy problem cannot be answered within the supersymmetric paradigm. There are some very satisfactory possible explanations for the origin of $\mu$ in extended models. The point to make though is that you need such an explanation in addition to needing supersymmetry. For example, a common explanation is to have $\mu=0$ at high scale, imposed by some global or scale symmetry, only to be made non-zero when some dynamical scale is generated (e.g. by spontaneous symmetry breaking) at a comparatively high scale, which then induces a small $\mu$ term via some dimensionally suppressed operator. Something like this arises if the dynamical scale is otherwise decoupled and only communicated to $\mu$ via even higher scale physics (e.g. gravity or otherwise). This is an excellent example of how a fully natural hierarchy can exist in a quantum field theory. In this setup the $\mu$ parameter has its origin in the high dynamical scale, and its relative smallness (and the failure of naive dimensional analysis) is just explained by a suppressed coupling between the scales.

19. The problems with measuring naturalness

So far our discussion of naturalness has been intentionally non-rigorous. We have talked about parameters being precisely specified, in both local and global senses, without really explaining what this might mean quantitatively. Indeed, many questions remain, for example: In what parameters should we measure perturbations ($x$, $x^2$, $\log(x)$, ...)? What constitutes an unacceptably large change in the observables? Do we measure perturbations in all parameters, including the already measured parameters, or just the unmeasured ones? Does the answer depend on the way in which I write down my theory? What is the "volume" of the original parameter space? Is it right to exclude theories which are non-perturbative just because I cannot calculate in them? And so on.

There is a tendency in the field to define naturalness measures intuitively. For example, the most popular is the Barbieri-Giudice fine-tuning measure which compares percentage changes in an input(s) versus those in the Higgs mass-squared parameter (or the Higgs mass, or $Z$ mass, or similar):$$\Delta_{\mathcal{X}_I} = \left|\frac{\partial\log\mu^2}{\partial\log\mathcal{X}_I}\right|,$$where $\mathcal{X}_I$ is some high scale "input" parameter, usually one of the Lagrangian parameters or a high scale observable. If this measure is sufficiently large then you would start to call the theory unnatural, since a small change in the input is inducing a large change in the observable. When simple intuitive measures return non-sensical results in special cases, or when they become too involved to fully calculate, they might be extended/patched/simplified in various ways which are again often motivated by intuitive arguments. Popular ones are, for example,$$\Delta = \max\limits_{\mathcal{X}_I}\left\{ \left|\frac{\partial\log\mu^2}{\partial\log\mathcal{X}_I}\right| \right\},\text{ and}$$ $$\Delta = \sqrt{ \sum\limits_{\mathcal{X}_I} \left(\frac{\partial\log\mu^2}{\partial\log\mathcal{X}_I}\right)^2 },$$where the maximisation/sum is often performed over a subset of the parameters for simplicity. The end result of all this is a plethora of measures within the literature which can return very different results even for the very same model, and no clear "best" measure or even a methodology by which to categorise/compare the measures. Since they are motivated intuitively, it is not clear what the assumptions are behind them, and as such no clear way to address questions like in the first paragraph. Put simply, they are just rather arbitrary. A common excuse is the following: well, naturalness is a subjective concept anyway, why shouldn't our measures also be? This to me is entirely unsatisfactory – we can do better.

I make this claim because the last paragraph follows the arc of my own study and understanding of naturalness measures. In studying naturalness even within very minimal extensions of the standard model I found that the simple measures would sometimes fail to identify the fine-tuning in certain areas of parameter space which were clearly fine-tuned (regions which resembled what is known as a "Veltman throat"). Sometimes it can be argued that this goes away when the calculations are performed at higher loop order. Other times it remains. It doesn't take much brainstorming effort to intuitively identify a number of possible ways to extend the simple measures in order to capture the fine-tuning, but it is not at all clear which is the "proper" way. And when you're stuck, you go back to first principles. I asked: what are my assumptions? what exactly do I mean by naturalness? and so on, much of which resulted in what has already been written. The key turning point in my understanding of naturalness measures in particular was the discovery of a paper by Sylvain Fichet: "Quantified naturalness from Bayesian statistics"...

20. The Bayesian approach to measuring naturalness

Bayesian probability is a framework that has all the ingredients to capture and quantify the subjective part of naturalness and leave the rest up to the mathematics in a completely consistent way. One can write down quantities which act just like naturalness measures, but with the appealing property of having a precise meaning in terms of Bayesian statistics. This chapter is rather loose and a bit technical, but I want to provide a sketch in order to give you a taste of how this works, because it seems to me this is just the right way to think about naturalness.

Take some high scale model $\mathcal{M}$ of particle physics. The question of naturalness is reframed: how probable is the low scale standard model given this high scale model? Mathematically, that is, you are interested in$$Pr(\mathcal{O}=\mathcal{O}_{exp} | \mathcal{M}),$$where $\mathcal{O}$ is the set of observables. This is what is called the "Bayesian evidence" for $\mathcal{M}$ given a set of prior beliefs on the model inputs,$$B(\mathcal{M})  := Pr(\mathcal{O}=\mathcal{O}_{exp} | \mathcal{M}) = \int Pr(\mathcal{O}=\mathcal{O}_{ex} | \mathcal{I} )\; Pr( \mathcal{I} )\; d\mathcal{I},$$where $\mathcal{I}$ is the set of input parameters and $Pr( \mathcal{I})$ the set of prior beliefs. The Bayesian evidence is a very good place to start deriving a naturalness measure. All the subjectivity is captured and quantified in the prior densities (and implicitly the volume of the input parameter space). If you work through the mathematics (and assuming flat prior densities) you find that the Bayesian evidence becomes something like$$B(\mathcal{M}) \sim \frac{1}{\sqrt{\left|{\rm det}\left(JJ^T\right)\right|}},$$where $J$ is the matrix $J_{ij} = \partial\mathcal{O}_i/\partial\mathcal{I}_j$. (The origin of this term lies in coordinate transformations and the induced metric on the input space submanifold carved out by the requirement that observables match experiment).

Now, as argued above, we can define our input parameters with respect to the renormalised high scale model Lagrangian parameters, call them $\{\mathcal{X}_I\}$. What about our priors? Requiring that the result not be dependent on units or parameter rescalings suggests that we should take a flat prior in the $\log$ of the inputs (since $\partial\log\mathcal{X} = \partial\mathcal{X}/\mathcal{X}$); this is a sort of "maximally agnostic" prior. Similarly, we identify the set of observables with the logged set of renormalised standard model Lagrangian parameters, call them $\{\log\mathcal{X}_O\}$. The Bayesian evidence becomes$${\small
B(\mathcal{M}) \sim
 \frac{1}
 {\sqrt{\left|{\rm det}\left[
 \left(
 \begin{array}{ccc}
  \frac{\partial\log\mathcal{X}_{O_1}}{\partial \log\mathcal{X}_{I_1}} & \cdots & \frac{\partial\log\mathcal{X}_{O_1}}{\partial \log\mathcal{X}_{I_n}} \\
  \vdots & \ddots & \vdots \\
  \frac{\partial\log\mathcal{X}_{O_m}}{\partial\log \mathcal{X}_{I_1}} & \cdots & \frac{\partial\log\mathcal{X}_{O_m}}{\partial\log \mathcal{X}_{I_n}}
 \end{array}
 \right)
 \left(
 \begin{array}{ccc}
  \frac{\partial\log\mathcal{X}_{O_1}}{\partial \log\mathcal{X}_{I_1}} & \cdots & \frac{\partial\log\mathcal{X}_{O_1}}{\partial \log\mathcal{X}_{I_n}} \\
  \vdots & \ddots & \vdots \\
  \frac{\partial\log\mathcal{X}_{O_m}}{\partial\log \mathcal{X}_{I_1}} & \cdots & \frac{\partial\log\mathcal{X}_{O_m}}{\partial\log \mathcal{X}_{I_n}}
 \end{array}
 \right)^T
 \right]
 \right|}}
}$$So you're now starting to see something which looks like the inverse of a generalised version of the Barbieri-Guidice measure. That is what you expect, since low evidence should correspond to high fine-tuning (or low naturalness). And this quantity is calculable (if the model is perturbative). The renormalisation group equations, together with the threshold corrections at the interfaces of effective field theories, define the map which relates the high scale inputs to the standard model observables at low scale. With this map in hand you can start turning the crank: you just calculate to the highest loop level you can (or are willing to) and solve the resulting coupled set of differential equations with boundary conditions to evaluate $\left|{\rm det}\left(JJ^T\right)\right|$ at different points in the input parameter space.

How do you interpret the number you get? Actually it is not so straight forward to interpret the Bayesian evidence alone. In the above equations I left off volume factors and the integration over input space. This integration is complicated by the fact that points in the theory of interest may hit non-perturbative regimes (where we do not yet know how to calculate). I left these details off because there is a way to "bypass" the complications by taking ratios of Bayesian evidences. This can be done between models, within the one model for different inputs, or for different priors, and can be set up to capture the local or global naturalness problem. Whatever is chosen, the interpretation of the ratio is a well-defined one: it is a Bayesian model comparison which captures the relative evidence for one model over another. For example, to study naturalness of the Higgs mass in the paper for which I was a co-author, we found it useful to compare the models where the Higgs mass-squared parameter was taken either as a low scale "phenomenological" input parameter, or as a high scale input parameter (with the same prior). This ratio had some nice properties where much of the matrix algebra cancelled to unity, an intuitive Barbieri-Giudice-like measure was reproduced in a relevant limit, and all the previously uncaptured areas of fine-tuning were smoothed over.

The particulars of that approach are beyond the scope of this blog post (and irrelevant, really). What I wanted to give was a flavour of the Bayesian approach to naturalness. Unfortunately this approach is still a minority in the literature. There are probably two main reasons for this. The first reason is just that it is not as straight-forward as writing down an intuitive measure. The second reason is uneasiness about dependence on the priors; the common objection is the following: clearly your answer depends on the priors, and how do you know that the high scale physics implies e.g. flat priors? But that's exactly the point – you don't and you can't. What you have done is derive a naturalness measure from an underlying framework with a well-defined meaning and with all your assumptions rolled into the priors in a clear, explicit (and optionally maximally agnostic) way. That is in my opinion much more transparent than just using a measure written down intuitively. And it makes clear that you are in fact making assumptions about the high scale physics. Naturally! For all these reasons I find the approach extremely satisfying.

21. A kind of conclusion

I don't know if anyone will read this post, but I hope that they do, and that they share it and challenge it. It seems ridiculous to me that the field of physics beyond the standard model, which (it is probably fair to say) has been motivated primarily by naturalness arguments for the past decades, is so loose and so full of misconceptions about naturalness. I guess it is just the foreseeable consequence of a lack of clear, physical, rigorous, well-defined, and agreed upon definitions. There may have been a time when the majority of the field understood the nuances, but this does not seem to be the case now, and certainly not at the graduate level, where our exposure usually amounts to the same parroted introduction slide explanation in terms of a top quark induced quadratic divergence. Not only does this undersell the more profound reason why e.g. supersymmetry is a potential solution, but it propagates the incorrect ideas that the top quark itself is the problem, and that it is the scale of new physics alone which sets the level of the problem (i.e. not involving the coupling strength).

At a time when the Large Hadron Collider is challenging the established wisdom on naturalness, surely it is time to take stock and sturdy up its foundations? If you agree, please share this and start the dialogue. I sure hope so, but maybe not. So it goes.

Sunday, 5 June 2016

Warsaw Workshop on Non-Standard Dark Matter

For the last few days I've been at the Warsaw Workshop on Non-Standard Dark Matter. It's been very enjoyable! Plenty of interesting ideas, coffee, and social events. Yesterday I gave a short talk, trying to make the case for a dark matter direct detection search for the sidereal modulation signature. The general idea is that, if dark matter has self-interactions, the dark matter wind which strikes the Earth will interact with any Earth-captured dark matter, leading to a non-trivial spatial distribution which terrestrial detectors traverse throughout the day. I share the slides below this post. If nothing else you should click through to see some entertaining magnetohydrodynamic simulation animations!

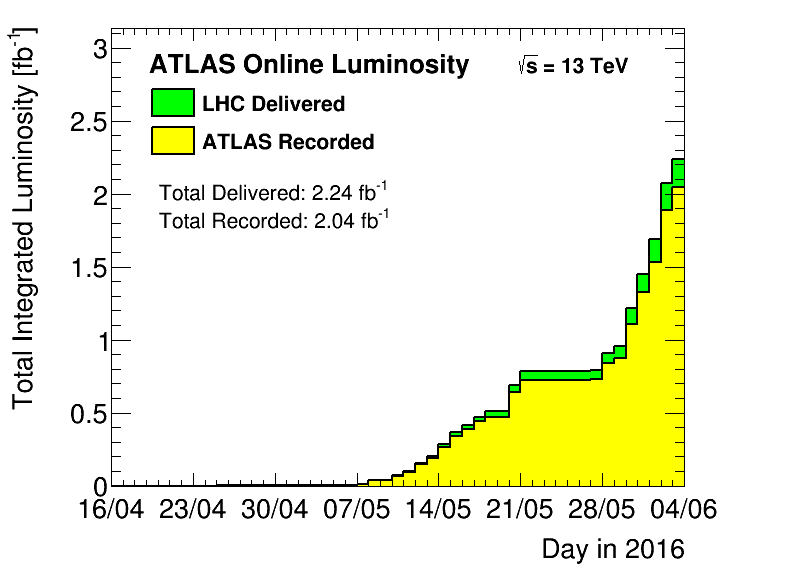

By the way, as of this writing ATLAS+CMS have recorded about 2+2/fb of data (or 20 diphotons in alternative units):


We're quickly moving toward the position we were by Christmas last year (about 3+3/fb including the CMS $B=0$ data). If the 750 GeV diphoton resonance prevails in the new data we hope to know by the ICHEP on August 3-10. Some authors have taken to calling the would-be particle Ϝ, which is the archaic Greek letter "digamma" -- very fitting! We will see yet if this name becomes lore... I also quite like the following perhaps future update of the PDG from Strumia:





Slides




Sunday, 24 April 2016

Wrap-up

Readers might have noticed that this blog has slowed down lately. The reason is that I am in a transition period at the moment, wherein I hope to: see to completion three collaborative projects, attend two conferences in Europe (Warsaw Workshop on Non-Standard Dark Matter, and The Lindau Nobel Laureate Meeting), make it back in time for SUSY2016 in Melbourne, complete my PhD thesis (by August 1), move into a new position juggling research with industry work, and also go on a belated honeymoon... hence the blog will have to go on the backburner for now. In order to keep this format up I need to be in a stable routine, which was the case for the last year or so, but currently is not. Updates might still be made in the coming months, though certainly not in this same format. Until then...!
  • April Fools came and went; see CERN's effort hereFermilab, arXiv here, and return of supersplit supersymmetry, this time (of course) linked to the 750 GeV diphoton excess.
  • Dark Matter at the LHC Workshop ran from 30 March to 1 April (indico). LHCski: A first discussion of 13 TeV results, ran from 10-15 April (indico).
  • In audio/video media:
    • In Particular shorts: Graviton. [7:14]
    • Art McDonald via Perimeter Institute: A Deeper Understanding of the Universe from 2 km Underground. [1:16:53]
    • Jernej Kamenik via Laitn American Webinars: Update on the LHC diphoton excess. [1:11:58]
    • Nima Arkani-Hamed via IAS Princeton: The Future of Particle Physics. [1:43:42]
    • David Kaplan via Quanta: Is That 'Bump' a New Particle? [2:25]
    • Don Lincoln via Fermilab: Theoretical physics: insider's tricks. [8:31]
    • Perimeter Institute: Canadian Prime Minister Justin Trudeau Explains Quantum Computing. [1:08]
    • Vsauce: How To Count Past Infinity. [23:45]

Friday, 25 March 2016

Friday wrap-up: Moriond...

The 50th anniversary Rencontres de Moriond (electroweak indicotwitterhashtag) was on over the past few weeks. Here's the updated logo [credit Strumia]:


Not sure how the 7 got in there... probably insignificant.
  • The most anticipated results were updates on the 750 GeV diphoton saga. Slides from ATLAS and CMS are here and here.

    There are excellent detailed write-ups at Résonaances and PhysicsMatt already, and I don't have much to add to these (for pop-sci articles see e.g. Guardian, symmetry, Scientific American). You should read them, if you haven't. In short, with the addition of new "B=0" data from CMS and an updated analysis from ATLAS, the excess is not going away. Below I reproduce one of the third-party combination plots published on PhysicsMatt which tells some of the story. On the left is the combination of previous data, and on the right after the Moriond update, assuming the Volksmodel $gg\to S\to \gamma\gamma$ and a narrow width:


    One can see by eye that the reanalysis of the ATLAS 8 TeV data shows it is more consistent with a $gg\to S$ 13 TeV excess than previously believed, and there's an excess in the new CMS 13 TeV data in the right ballpark. Taken together this adds a little fuel to the fire.

    As well, there are strong rumours that ATLAS are sitting on an analysis in which they relax some of their cuts (increasing acceptance of events), and that this alone bumps up the local (global) significance of the excess to ~4.7σ (>3σ) [see e.g. Résonaances and comment section]. If this is true then hep-ph might as well become hep-γγ...

    For your interest see below some (obviously biased) surveys in the twittersphere. Clearly people are taking this seriously. If the rumoured ATLAS analysis is true I would give the 750 GeV excess a dice throw at sticking around.

  • If you're out of ideas for how to explain the excess, then maybe you can find inspiration at snarXiv.
  • About a month ago D0 announced observation of a tetraquark $X(5568)\to B_s^0\pi^\pm$ state. It received quite a bit of press. Here's the plot from the D0 preprint:


    At Moriond LHCb announced that they see no evidence for such a tetraquark state (slides 22-24 here). A few days ago there was an LHC Seminar on the analysis. From what I can gather, there is some talk of bias introduced by a "cone cut" in the D0 analysis. In the Conf Note LHCb write:

    In the D0 analysis, a requirement is imposed on the opening angle between the $B^0_s$ candidate and the companion pion in the plane of pseudorapidity and azimuthal angle [$\Delta R$]... No such requirement is imposed here, as $\Delta R$ is strongly correlated with $Q$ value and, when combined with kinematic requirements imposed by the LHCb detector acceptance, a cut on this variable can cause broad peaking structures.

    There is speculation that this might have introduced some spurious shape or impacted the statistical interpretation somehow for D0. I find the following slide from the seminar rather telling.

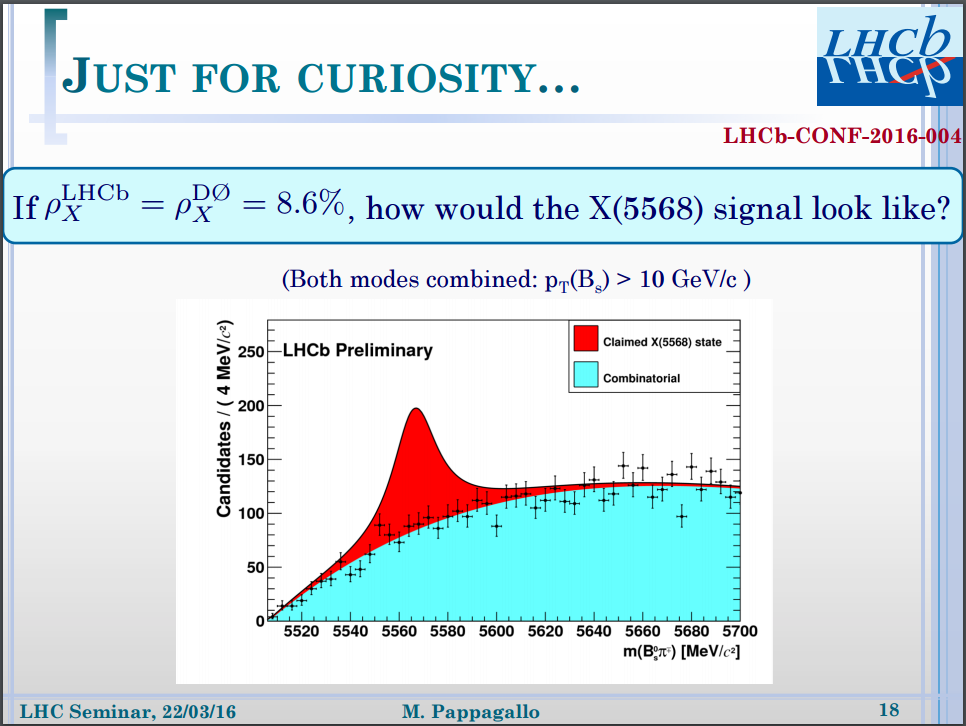

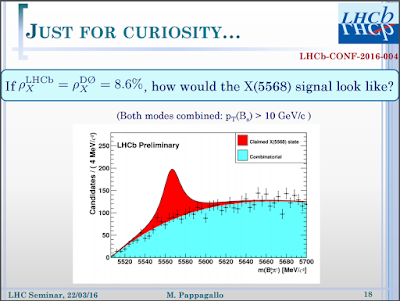

    Here $\rho_X$ is the fraction of $B_s^0$ coming from tetraquark decays. Could there be some major difference in the production of $X$ or of $B^0_s$ in a $p\bar{p}$ (as in D0) versus a $pp$ (as in LHCb) collider? Would love to hear from an expert. In the mean time we wait for results from ATLAS/CMS, and in particular CDF (the partner experiment to D0 at Tevatron) to tell us more. There's a pop-sci article at Scientific American here.
  • LHC beam splashes tonight!
  • Links without thinks:
  • In audio/video media:

Sunday, 6 March 2016

Friday wrap-up: LIGO, chasing the 750 GeV excess...

Apologies for the long hiatus -- other aspects of life have been getting in the way. Here is a summary of the last month or so...

  • Of course the biggest news was the first observation of gravitational waves, a binary stellar-mass black hole system, and a binary black hole merger. Not bad for an 8 page paper! The signal is really quite striking; it's wonderful to see the agreement between the two detectors. I reproduce the observation plot below, just because one cannot admire it enough.


    Interest in the finding was phenomenal; the Physical Review Letters server even crashed (they were getting 10k hits per minute). One can find plenty of explanations at various levels online: e.g. for the layperson see Quanta, or Brian Greene on the Late Show; for the more scientifically minded there exists a digestible summary of each paper by Christopher Berry; or for a colloquium-level talk see Barry Barish at CERN. Lastly you can enjoy the xkcd.

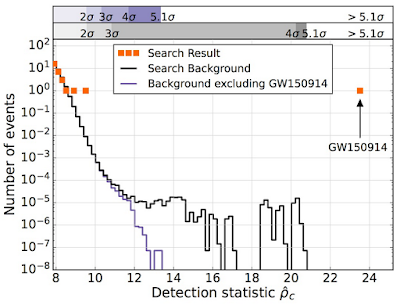

    Here I just want to mention some interesting facts, taking as read the core ideas behind the phenomenon and the measurement. The event was actually observed before the first planned science run, during an engineering run. It was identified within 3 minutes and the decision was subsequently made to keep settings in place to take 16 more live days of data. This time period was chosen so that the data-driven background estimation could nail down the unlikeliness of the event to >5.1σ under the background-only hypothesis. Below is shown the event and background estimation; the detection is well in excess of 5.1σ, even including the event itself in the background estimation.


    The data is in fact completely open and you could analyse it yourself! In addition to the GW150914 event there are also two others that rise somewhat above the background ("GW151012" and "GW151226"). You can see them by eye in the above plot. They are clearly not statistically significant enough to announce a discovery alone, but still they are tantalising... with room for improvement to design sensitivity (by a factor of ~2 which increases the spatial reach by 2^3) and the construction of a third detector in India to triangulate the signal, the future of gravitational wave astronomy is exciting.
  • There's also that puzzling observation by Fermi of a gamma-ray burst 0.4s after the gravitational wave detection. There are good reasons for and against believing this was associated with the GW150914 event (see Quanta); the best way to tell is to just to wait and see if it happens again!
  • On the 750 GeV diphoton excess you can read Jester's "750 ways to leave your lover" on various explanations.

    As well, a comprehensive paper appeared on the arXiv reviewing some of the renormalisable and weakly-coupled explanations. In the authors' literature review they "found a wide range of mistakes or unjustified assumptions, which represent the main motivation that prompted this work." The suggestion is to utilise computational tools (e.g. SARAH) to automate the work which the phenomenologist should be doing anyway for a thorough analysis, and they provide 40 model files to match models already in the literature.

    Let us review these "mistakes or unjustified assumptions"; we will refer to the resonant 750 GeV state as $S$ throughout, and consider models where the effective coupling of $S$ to the diphoton/digluon vertices are induced by a loop of gauge-charged fermion(s) or scalar(s) [of course there are explanations which do not fit into this framework]...

    Next-to-leading-order (NLO) corrections to the $S$ decay widths matter. Compared to the LO result used in many papers, NLO corrections typically decrease $\Gamma(S\to\gamma\gamma)$ by O(10%), and N3LO corrections can increase $\Gamma(S\to gg)$ by a factor of almost 2. Overall this means $Br(S\to gg)/Br(S\to\gamma\gamma)$ is typically underestimated (for scalar $S$) by as much as a factor of 2 when using the LO estimate. This will change best fit regions and lead to stronger constraints from the dijet channel. Models which live on the edge of exclusion based on LO estimations may not survive.

    It is often assumed that $S$ does not mix with the SM Higgs. But mixing is necessarily generated at some loop level. If a fermion is in the loop it is a three-loop effect (but with large Yukawas and strong gauge couplings at the vertices). If a scalar is in the loop it arises at one-loop. This contribution can be turned off by tuning a quartic term to zero [this is not stable under the renormalisation group evolution], but there is always a pure-gauge two-loop contribution. This effect should be acknowledged and checked for consistency.

    Another common assumption is that the $S$ vev is zero. But since there is a $Sgg$ vertex the $S\to -S$ symmetry must be broken when expanded around the vacuum ($S=S_0 - \langle S_0 \rangle$). It is hard to imagine a non-finely-tuned potential with this property and a minimum at $\langle S_0 \rangle=0$. Another way to argue this is made in the paper: if the original state $S_0$ couples at a three-point vertex with a new fermion or scalar, then a tadpole term will induce a non-zero linear $S_0$ contribution which acts like a vev insertion.

    Decay channels have been missed in some works which can significantly change conclusions.

    In the proposed models it is necessary to have a rather large diphoton width. The authors identify three main methods for achieving this. There are worries with each of them which have not been addressed uniformly in the literature....

    1. If fermion in the loop, then a large Yukawa coupling $yS\psi\bar{\psi}$. Typically these need to be O(1). Naturally, one should make sure perturbativity is under control when calculating the one-loop effective coupling. There exist papers which don't. As well, even if it remains pertubatively controlled at the 750 GeV scale, the renormalisation group evolution can evolve that Yukawa to the non-perturbative regime at some higher energy. This should be checked and at least acknowledged. [It is an interesting fact that this does not happen in the standard model for the top Yukawa; it is ~1 at the electroweak scale and shrinks with energy scale due to Higgs/top quark gauge contributions].

    2. If scalar in the loop, then a large cubic term $\kappa S XX$. The authors point out that this generally leads to problems with stability of the electroweak vacuum. I will also add that if the cubic term is large (>TeV) compared to the desired sub-TeV particles, then it is likely that the vacuum potential must be somewhat tuned, and this will not be stable under radiative corrections.

    3. Instead of relying on a large Yukawa or cubic, increase the charge coupling the loop fermion/scalar to gluons/photons or have more particles in the loop. Papers exist with Q≥5 and N=9000. However, such changes induce a large correction to the gauge coupling renormalisation group running above threshold, and can lead to high-energy electroweak behaviour which is ruled out, or worse to a Landau Pole at energies below 1 TeV.
  • My conclusion from all this: even if one does not object to the phenomena of ambulance chasing [I personally do not object to the principle], one should object to the lack of quality that seems to go along with it. It is a problem that assumptions are made and effects are overlooked which change conclusions considerably. It is a problem that lower quality papers are (at least for a good while) cited on par with better considered ones. It is a problem that we are mostly seeing the same idea embedded into different models with no qualitatively new observations. In addition, it is frustrating that (non-)participation in trending topics has implications for whether you can continue to make your way in the field, especially for early career researchers.
  • On a lighter note, see the arXiv preprint "A Theory of Ambulance Chasing" by Mihailo Backović (a 750 GeV ambulance chaser himself!) for a bit of fun, where he attempts to model the total number of papers on a trending topic as a function of time. For the diphoton excess: "It follows that if the interest scales as an inverse power law in time, the cumulative number of papers on a topic is well described by a di-gamma function, with a distinct logarithmic behavior at large times." "Di-gamma" is just brilliant. A (testable) prediction of this model is that "the total number of papers will not exceed 310 by June 1, 2016". If you feel like you have a better model, then throw your hat into the ring!
  • The HEP Postdoc Project has appeared. To quote the website: "The HEP Postdoc Project intends to be a tool for Postdocs, or even PhD students, in the area of High Energy Physics... When an applicant accepts an offer, she/he is lacking, however, important information about the senior researchers in the corresponding institution... The goal of the HEP Postdoc Project is to fill this gap. Please, send us your opinions on senior high energy physicists you have interacted with in the past..."
  • CERN is doing an "In Theory" series of articles on the CERN Theory department. The first-two installments are "Welcome to the Theory corridor" and "why bother with theoretical physics?"
  • Conferences/workshops:
    • CoEPP Annual Workshop 2016 (indico)
    • LHC Performance Workshop (indico)
    • UCLA Dark Matter 2016 (agenda)
    • CERN Winter School on Supergravity, Strings, and Gauge Theory 2016 (indico)
  • Links without thinks:
    • Stories of Australian Science: Looking for dark matter in a gold mine.
    • Sabine Hossenfelder via aeon: The superfluid Universe.
    • SciAm: Physicist Sabine Hossenfelder Fears Theorists, Lacking Data, May Succumb to "Wishful Thinking".
    • Smashpipe: Who's winning the string wars and why should you care? [Part 1 and Part 2]
    • Quanta: From Einstein’s Theory to Gravity’s Chirp.
    • Lawrence Krauss via New Yorker: Do the New, Big-Money Science Prizes Work?
    • symmetry magazine: The ABCs of particle physics.
  • In audio/video media:
    • Recordings of talks from "Why Trust a Theory? Reconsidering Scientific Methodology in Light of Modern Physics" [In my opinion, more conferences/workshops should record and make public their talks like this].
    • CMS Experiment: An introduction to the CMS Experiment at CERN. [7:25]
    • Katherine Freese at Perimeter Institute: The Dark Side of the Universe. [1:03:16]
    • Gianfranco Bertone: The Quest for Dark Matter. [1:00:23]
    • Camilo Garcia-Cely: Phenomenology of Left-Right Symmetric Dark Matter. [1:06:30]
    • Gero von Gersdoff: Light by light scattering and the 750 GeV diphoton excess. [58:00]
    • The Good Stuff: What the Heck is Dark Matter? [12:02]
    • Stephen Sekula SMU Godbey Lecture: "The Tail of the Lion: 100 Years of General Relativity, the Scientific Theory of Space and Time" [1:10:05]
    • La physique autrement: Physics and caffeine. [9:12]

Friday, 29 January 2016

Friday wrap-up: diphoton uncertainties, dark matter uncertainties...

Wherein I list some (mostly) recent happenings, ramble a bit, and provide links, in an order roughly determined by importance and relevance to particle physics. Views are my own. Content very definitely skewed by my own leanings and by papers getting coverage, and it may not even be correct. It is a blog after all...

  • There's quite a bit of discussion over at Résonaances (see also the comments) surrounding the Davis-Fairbairn-Heal-Tunney paper proposing an underestimated systematic in the background parameterisation used in the ATLAS diphoton analysis. This (and related) discussion looks to have aided (according to the acknowledgments) the preparation of another paper from Bradley Kavanagh, which seems to clarify the issue. In that paper it is written:

    Davis et al. introduce a different possible parametrisation for the background (which was also validated by a Monte Carlo study) and find that the significance of the excess is further reduced with respect to the k = 1, fixed-N case. However, the empty bins at high mγγ were not included in that analysis, leading to a background fit which overestimates the high mγγ event rate. Indeed, using the Davis et al. background parametrisation (with free normalisation) in this analysis gives a local significance of 3.8σ for a free-width resonance. This does not discount the possibility that exploring a wider range of possible background functions may impact the significance of the 750 GeV excess, but the correct constraints from the entire range of mγγ should be taken into account.
  • A few-interesting-papers appeared concerning baryonic effects on the local dark matter velocity distribution, of interest for interpreting direct detection experiments (see Matthew Buckley's blog for a write-up of one of them). Each of the papers takes a number of simulated Milky Way-like galaxies and looks at the dark matter distribution at Solar radius. Naturally, due to the small number of simulated galaxies, the papers reach slightly different conclusions. What is clear, though, is that there are significant uncertainties in both the local density and the local velocity distribution, which means that the usual direct detection limits you see drawn on e.g. σSI versus mχ space should be taken with a small grain of salt, since they assume the standard halo model. Also of note is that these effects alone cannot ameliorate tension with the DAMA/CoGeNT events. Further work in this area will be interesting to follow as additional (and more detailed) simulations become available.
  • Links without thinks
    • .Mic: "With One Hashtag, Female Astronomers Share Their Heartbreaking Stories of Harassment"
    • Nicolas Gisin via IQOQI: "Thought police – on arXiv?"
    • BackReaction: "Does the arXiv censor submissions?"
    • nature: "Hawking’s latest black-hole paper splits physicists"
    • Ars Technica: "The search for dark matter heats up"
  • A sad day for Comic Sans enthusiasts everywhere (nowhere?) -- apparently no more from Fabiola...

Friday, 15 January 2016

Friday wrap-up: gravitational* waves?...

A short list this week. And the next post will be in two weeks...

  • The 6th International Workshop on High Energy Physics in the LHC Era was on from 6-12th Jan [indico].
  • Links without thinks
    • Scientific American: "Stephen Hawking's New Black-Hole Paper, Translated: An Interview with Co-Author Andrew Strominger"
    • Sabine Hossenfelder via Quanta: "String Theory Meets Loop Quantum Gravity"
    • Nautilus: "Beauty Is Physics’ Secret Weapon," an interview with Frank Wilczek.
  • In audio/video media:
    • Hitler doesn't get a postdoc in High Energy Theory. [3:49]
    • NASA: Fermi Sharpens its High-Energy View. [5:30]
    • Sixty Symbols: Hairy Black Holes and Super Selfies. [7:11]
    • Physics Girl: 5 amazing stars we’ve discovered in space. [7:00]
    • SpaceX: "The Falcon has landed" Recap of Falcon 9 launch and landing. [3:37]
  • The collaborative diphoton project mentioned in the previous two posts is gaining some momentum. Watch this space...
